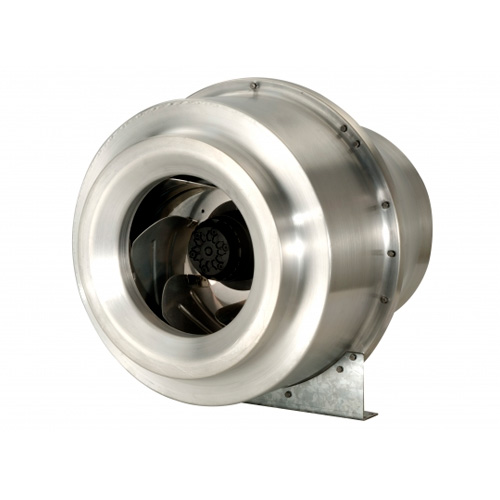

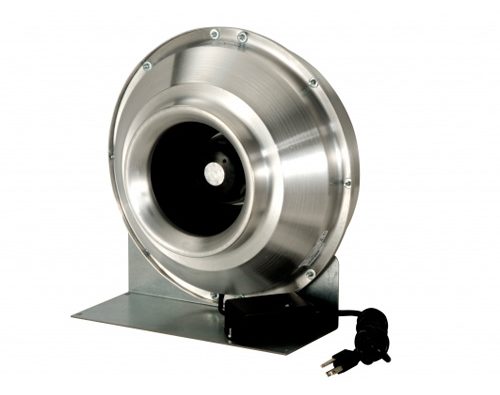

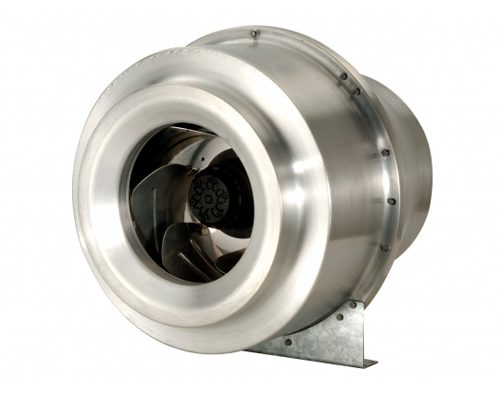

ACI Exhaust Fans

    The ACI Line Exhaust Fans are ideal for air exhaust or supply in large environments. Their versatility allows for multiple outlets or intakes within the same space and serves as a booster in extensive installations. Equipped with direct drive rotor fans, they guarantee efficiency and durability. With an operating temperature range of -40ºC to +65ºC, these exhaust fans work under extreme conditions and ensure continuous performance, maintaining their characteristics over time.

    Buy Now!
    Request a Quote

    About the Product

    Key Features:

    ✲ Designed for operation along the duct
    ✲ Provides high airflow and pressure for robust results
    ✲ Low noise
    ✲ Flexible installation (can be vertical or horizontal)
    ✲ Electrical wiring connection box
    ✲ Bearing-mounted motor for smooth operation and durability
    ✲ Thermal protector for added safety
    ✲ IP X4 / Class I rating, ensuring protection against splashes and electrical shocks
    ✲ Exclusive aluminum body, offering strength and lightness
    ✲ Meets the regulatory standards of Regulation 371/2009 from INMETRO
    ✲ ETL certified for the US and Canadian markets (100 mini to 355/115V)
    ✲ 1-year warranty

    Optional Features:

    ✲ Anti-mold: Ensures scheduled air renewal every 02, 04, or 06 hours
    ✲ Silencius: Reduces noise levels by up to 70% after 1 minute of use in the environment
    ✲ Timer: Timer with 01, 05, or 10-minute operation options

    Technical Specifications

    ModelNom. RPMVoltsMax. WATSSSTATIC PRESSURE IN INCHES W.G.Max. SPDuct DiameterEnergy Star
    0″0.125″0.25″0.375″0.5″0.75″1.0″1.25″1.5″
    ACI 100 MINI30001152612611298816531–––0.824″NO
    ACI 1002900115100108104918372604838221.894″NO
    ACI 125270011510016514912310488755539131.655″NO
    ACI 150251011512925323222520419016313105641.886″NO
    ACI 2002510115123378355332304285233201140581.818″NO
    ACI 250275011529255650546141436527816181–1.3510″NO
    ACI 31526001152727006486225735344724113552993.3512″NO
    ACI 3552450115 30796789079974054034818745–1.2914″NO
    ACIMODEL
    100 mini100125150200250315355400
    Frequency50Hz
    Maximum Flow Ratem³/h196256363520803985163519342903
    CFM11515021330647258096211381708
    Maximum Pressuremmwc172930485242602853
    Frequency60Hz100 mini100125150200250315355400
    Maximum Flow Ratem³/h2252753905608651080170022103200
    CFM132161229329509635100013002087
    Maximum Pressuremmwc223435566050653765
    Engine Power 316868120120240325250560
    Single-phase voltage 127 / 230V230V
    Total Power Absorbed 296262109105220286353625
    Sound Pressure Level [dB] *343338465051584149
    Ambient Sound Pressure Level – Leq [dBA] **455150616268746169
    Duct 4 4 56810121416
    Rotation 255026002600265026502850255015002475
    Weight 23,143,144,364,365,166,8610,5022,5
    * Specifications for 230V/60Hz. Sound pressure level radiated at 3 m in free field conditions, with ducts on the inlet and outlet. 1/3 octave band at 2.5 kHz.
    ** Specifications for 230V/60Hz. Ambient sound pressure level, radiated at 3 m in free field conditions, with ducts on the inlet and outlet.

    Models

    ACI 100 Mini

    ACI 100

    Serves bathrooms up to 52 m³

    ACI 125

    Serves bathrooms up to 73 m³

    ACI 150

    Serves bathrooms up to 106 m³

    ACI 200

    Serves bathrooms up to 163 m³

    ACI 250

    Serves bathrooms up to 204 m³

    ACI 315

    Serves bathrooms up to 322 m³

    ACI 355

    Serves bathrooms up to 418 m³

    ACI 400

    Maximum airflow of 3600 m³/h | Maximum pressure 50 mmca

    MODELDimensions (mm)
    abcde
    ACI 100 mini227992733030
    ACI 100305992552830
    ACI 1253051252552830
    ACI 1504001503102830
    ACI 2004001993103030
    ACI 2504002503103030
    ACI 3154703152853030
    ACI 3555203554804050
    ACI 4006304006103050

    FAQ

    The main function of an extractor is to extract gases and vapors from the indoor environment to the outside, thereby renewing the indoor air.

    The Sicflux ACI Line ensures the capture of gases, smoke, dust particles, and odors that may be present in the environment, reducing the risk of contamination and improving indoor air quality. The line provides greater protection and health benefits for all occupants.

    Choosing the best model requires some important considerations, including performance, efficiency, noise level, and potential risks. It should also comply with the ABNT 14.518/2020 standard, in terms of performance, dimensions, and construction characteristics.
    A good extraction and inflation system should always provide better air quality, meeting the needs of your environment. If you are unsure about which product is best, you can contact one of our specialists. We have a specialized team with the technical knowledge necessary to help you make the best choice.

    Extractors can be installed in all environments where the goal is to promote the renewal of indoor air, with greater benefits when installed in kitchens and bathrooms, environments more prone to air-borne bacteria. They are also essential for larger environments, such as industries and commercial establishments.
