GFR line blowers are the ideal solution for spaces with little or no ventilation, ensuring the removal of odors and impurities while providing thermal comfort for occupants. These units accelerate indoor air renewal by filtering polluted outdoor air before introducing it into the environment.
The GFR without filters can be used both as exhaust fans and as supply air units, offering even greater versatility for a wide range of applications.
About the Product
Key Features:
✲ Robust construction: Made from low-profile galvanized sheet metal, with mounting brackets for horizontal or vertical installation
✲ Internal direct-drive motor: Equipped with Sirocco rotor, eliminating the need for belts and pulleys and reducing maintenance
✲ Easy maintenance: Features a single access cover for quick cleaning and simplified servicing
✲ Low noise level and vibration-free, ensuring acoustic comfort in the environment
✲ Integrated thermal protector: Prevents motor overheating by automatically shutting down the unit
✲ Extended operating temperature range: Functions in temperatures from -40°C to +65°C, suitable for various operating conditions
Available Models:
🔹 GFR 230 – Three speeds | Single-phase voltage
🔹 GFR 280 – One speed | Single-phase voltage
Technical Specifications

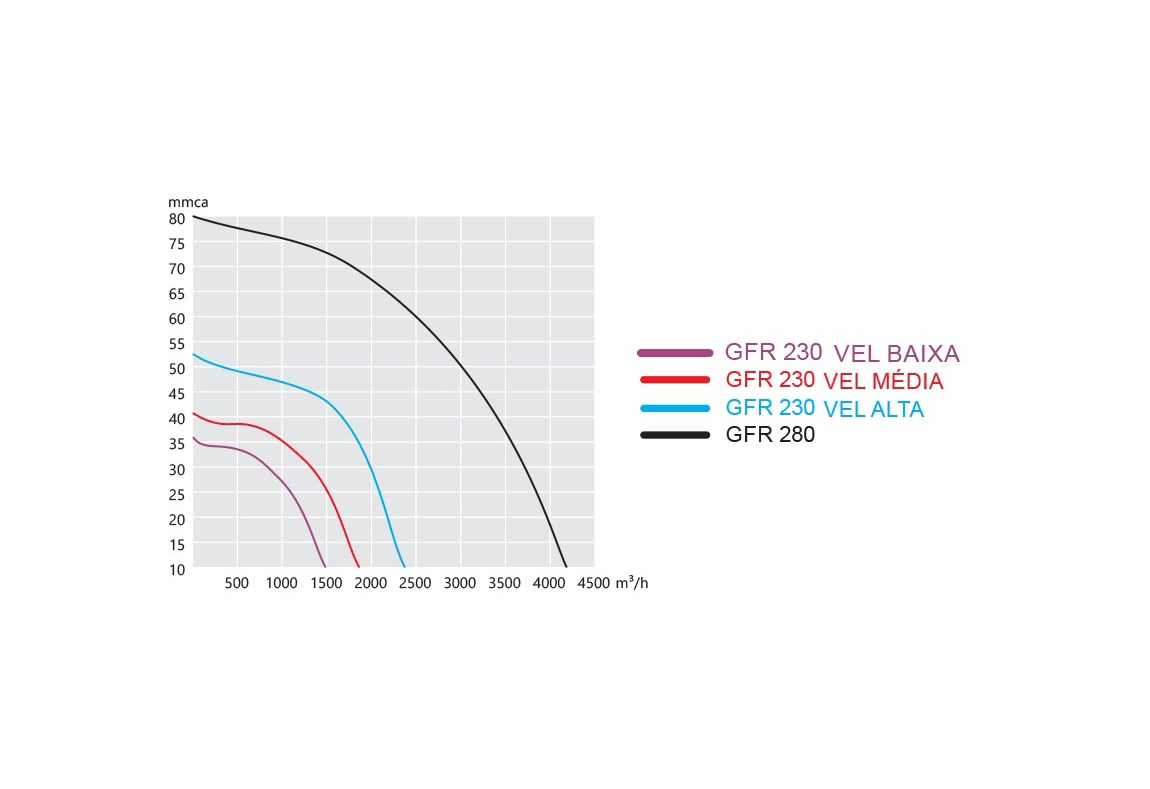

| Model | Speed | Maximum Flow Rate [m³/h] | Maximum Pressure [mmwc] | Sound Pressure Level [dBA] | Frequency [Hz] | Motor Power [W] | Total Power Absorbed [W] | Voltage Type | Voltage [V] | Dimension of intake port [mm] | Outlet mouth dimension [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 230 | High | 2350 | 52 | 60 | 60 | 450 | 734 | Single phase | 230 | 550×330 | 300×260 |
| Medium | 1811 | 41 | 57 | 465 | Single phase | 230 | |||||
| Low | 1485 | 36 | 55 | 330 | Single phase | 230 | |||||
| 280 | 1660 | 4220 | 80 | 63 | 60 | 800 | 839 | Single phase | 230 | 682×492 | 302×236 |
*Sound pressure level measured at 3 m in free field, with ducts on intake and discharge sides.
*Model 280 cannot be used with a frequency inverter.
Models

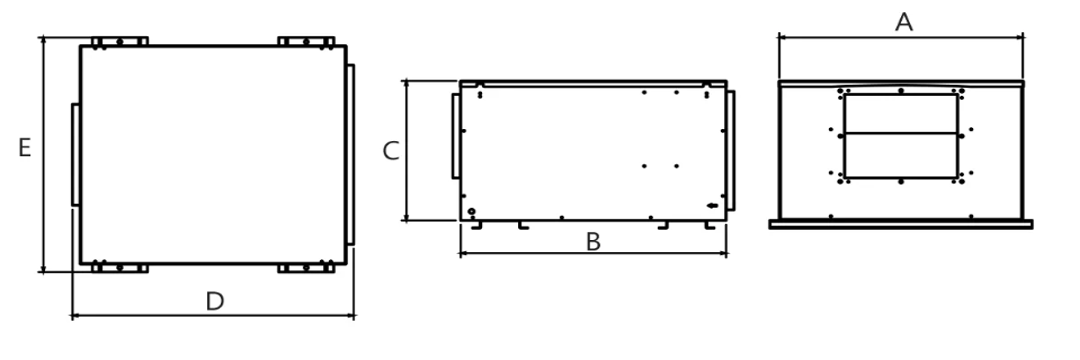

| MODEL | Dimensions (mm) | Weight (Kg) | ||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | ||
| 230 | 604 | 725 | 422 | 774 | 670 | 35 |
| 280 | 760 | 820 | 551 | 896 | 825 | 57 |
