Titan LD

    The Titan LD Universal fans offer superior efficiency, low noise levels, and high reliability when compared to axial fans. Designed for use in both industrial and commercial systems, these fans feature single and double inlet Limit Load blowers, making them essential for a wide range of applications. The innovative construction of the universal scroll allows flexibility in manufacturing and adaptability to different air discharge positions, making field modifications easier.

    Buy Now!
    Product Page

    About the Product

    *Product comes with no standard paint finish.

    Key Features:

    ✲ Construction: Universal scroll, adaptable to any air discharge position
    ✲ Inlet Type: Single and double inlet Limit Load
    ✲ Applications: Industrial HVAC, emissions control, fire safety, clean rooms, industrial exhaust, and power generation
    ✲ Fire Safety: In the event of a fire, pressurized stairwell mechanical ventilation prevents the spread of smoke, facilitating safe evacuation and avoiding intoxication and asphyxiation
    ✲ Exhaust System: Composed of natural or forced air intake, efficiently renewing indoor air
    ✲ Customization: Manufactured according to each project’s needs, including dampers, drain, and inspection door

    Technical Specifications

    ModelSizeArrangementClassPositions

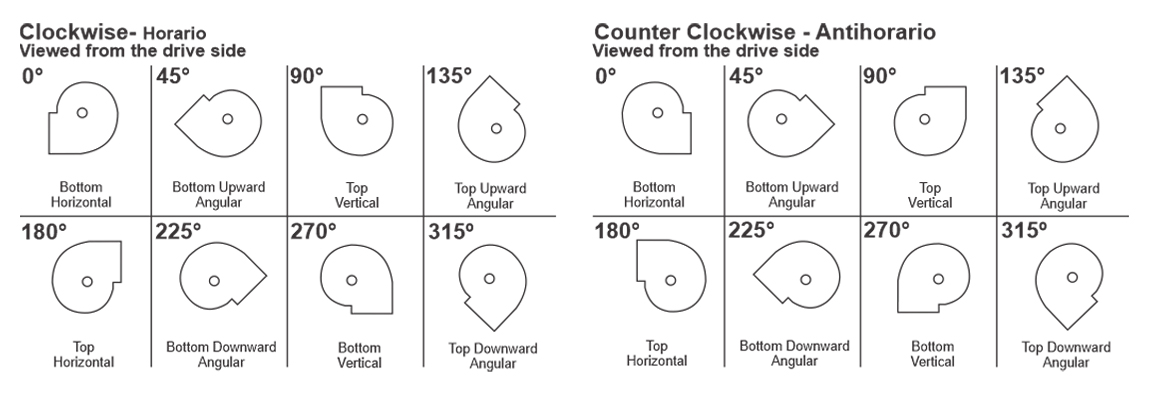

    Titan LD200 to 12503I,II,IIIClockwise or Counterclockwise at 0°, 45°, 90°, 135°, 180°, 225°, 270°, 315°
    *Larger models available upon request.

    Models

    Titan LD 200 to 1000

    ModelDimensions (mm)Weight [kg]
    ABCDE/cF/lG/a
    2003002003520038036039056
    2243352243522441540045063
    2503752503525045544548670
    2804252803528050549252878
    3154753153531555554757788
    35553035535355610611623100
    40060040040400794752725112
    45067045040450840831769150
    50075050040500830840833168
    5608505604056011001000948185
    63095063040630121911161023195
    710106071040710131812381133230
    800118080040800147613801257260
    900132090040900164715401440405
    100015001000401000182016711616525
    *Weight refers only to the complete housing, excluding motor weight. For other arrangements and constructions, please contact us for more information.

    FAQ

    The primary function of an exhaust fan is to extract gases and vapors from the environment, promoting proper air renewal indoors.

    When buying your exhaust fan, don’t forget to check the unit’s dimensions and the manufacturer’s installation recommendations.

    The installation of the exhaust fan must comply with the NBR 16401-2008 standard, including its performance, size, and construction features.
    A good exhaust system should always provide improved air quality, meeting the specific needs of your space. If you’re not sure which product is the best for you, feel free to reach out to one of our specialists. We have a dedicated team with the technical expertise to help you make the right choice.
